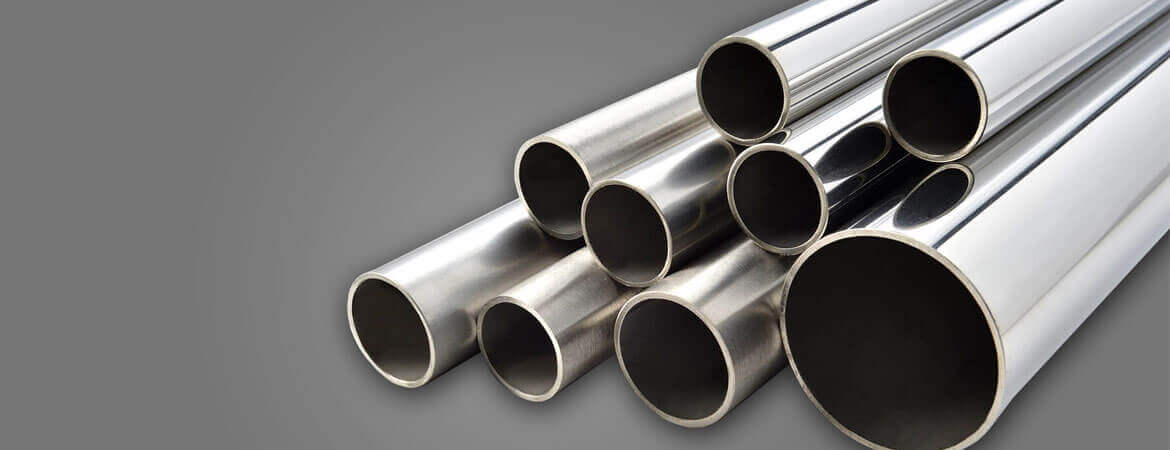

Nickel 200 / 201 Pipes and Tubes

200 Alloy Pipes, Nickel N02201 Pipes, Nickel Alloy 2.4066 Pipe, Nickel Alloy 200/201 Welded Pipes, Nickel 201 Seamless Tubes, ASTM B161 200 Nickel Alloy Seamless Pipes, ASME SB730 Nickel 201 Welded Tubing, Alloy N02200 Tubing Supplier in India.

Nickel Alloy 200 Pipe & Tubes

The manufacturing of it is done under the strict supervision of professional experts that are guiding the workers at all the production stages to fabricate the one that brings dimensional accuracy and fine surface finishes.

Nickel 200/201 alloy description-
Nickel 200/201 is a commercially pure wrought solid solution strengthened alloy with excellent mechanical properties over ranges of temperature and resistant to several corrosives. Alloy 201 is the modification of 200 for controlling carbon that is keeping it from getting embrittled by an intergranular precipitate at the temperature ranging 600 Deg F to 1400 Deg F. The alloy is greatly resistant to several reducing chemicals and caustic alkalies. It is high electrical conductivity, very good corrosion resistant to natural water and distilled water.

Testing conducted-
There are several tests essentially conducted on the Nickel 200/201 Pipes & Tubes. The reason is to check the product quality. The tests done are positive material identification test, hardness test, pitting resistance test, intergranular corrosion test, macro-micro test, flattening-flaring test, mechanical test, and chemical test.


Nickel Alloy 200 Seamless Pipe, ASTM B161 200 Nickel Alloy Seamless Tubes, Nickel Alloy N02201 Seamless Tubes, ASTM B725 201 Nickel Alloy ERW Pipes Manufacturer, Nickel Alloy 2.4068 Tubes, Nickel Alloy 200 Tubing Exporter, Alloy 201 Welded Tubes, Nickel DIN 2.4066 Seamless Pipes in Mumbai, India.

Documenting-
Several important documents are offered to the respective buyers when they buy Nickel 200/201 Pipes & Tubes. It is a heat treatment chart, quality assurance plan, packaging list, raw material test report, packaging list, material traceability report, certificate of origin, fumigation certificate. Additionally, radiography test report, third-party test report and raw material certificate is provided.


Equivalent Grades
STANDARD UNS WNR. GOST AFNOR JIS BS EN
Nickel 200 N02200 2.4066 НП-2 N-100M NW 2200 NA 11 Ni 99.2
Nickel 201 N02201 2.4068 НП-2 - NW 2201 NA 12 LC-Ni 99
Specification

Nickel 201 Seamless Pipes and Tubes : ASTM B161, ASTM B161, ASME SB161, and ASME SB161

Nickel 201 Welded Pipes and Tubes : ASTM B725, ASTM B730, ASME SB725, and ASME SB730

Standard : ASTM, ASME and API

Pipes Size : Seamless 1/2" - 10" , Welded 1/2" - 48"

Tubing Size : 4 to 219mm W. T.: 0.5 to 20mm

Length : Within 13500mm

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Types : Seamless / ERW / Welded / EFW / Fabricated / CDW

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes

End : Plain End, Beveled End, Treaded

Grades : Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201).

Types Of Nickel 200/201 Pipes & Tubes

Nickel Alloy 200/201 Pipes

Nickel Alloy 200/201 Pipes

Nickel 200 Seamless Pipes | Nickel Alloy 200 ERW Pipes | Nickel Alloy N02200 Pipes | Nickel 2.4066 Seamless Pipes | ASTM B161 200 Nickel Alloy Seamless Pipes | ASME SB 725 200 Nickel Alloy Welded Pipes | Nickel Alloy 200 Pipes | N02201 Nickel Pipes | Nickel Alloy 200 Welded Pipes | Nickel Alloy 200 Pipes

Alloy 200/201 Tubes

Nickel 2.4066 Tubing | Nickel Alloy N02200 Tubes | Nickel Alloy 2.4066 Seamless Tubes | Nickel Alloy UNS N02200 Welded Tubing | ASTM B161 200 Nickel Alloy Seamless Tubes, 200 Nickel Alloy Welded Tubing | ASME SB 725 200 Tubes | Nickel Alloy N02201 ERW Tubing | ASTM B730 200 Nickel Alloy Welded Tubes | Alloy 200 Tubing | Nickel Alloy 200 Tubes

Nickel Alloy 200/201 Tubes
Chemical Composition
Grade C Mn Si S Cu Fe Ni
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min
Nickel 201 0.02 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min
Mechanical Properties
Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 200 / 201 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %
Application Industry

Application Industry
  • 1
    UNS N02200 Seamless Pipes

    used in Oil Refinery Industry

  • 2
    DIN 2.4066 Welded Tubes

    used in General Piping Industry

  • 3
    Alloy 200 Seamless Tubes

    used in Gas Processing Industry

  • Chemical Industry
  • Oil & Gas Industry
  • Petrochemical Industry
  • Power Genration Industry
  • Sugar Industry
  • Food Processing Industry
  • Paper & Pulp Industry
  • Offshore and Onshore Services
